The HE range, designed for heavier excavators but, has the option for loader conversion, these buckets have increased size and capacity in comparison to the E range due to increase in rotor quantity and length. With three fragment sizes to choose from, standard size is 20mm with options of 10mm and 15mm. We need to know what machine the bucket will operate on for the appropriate head stock.

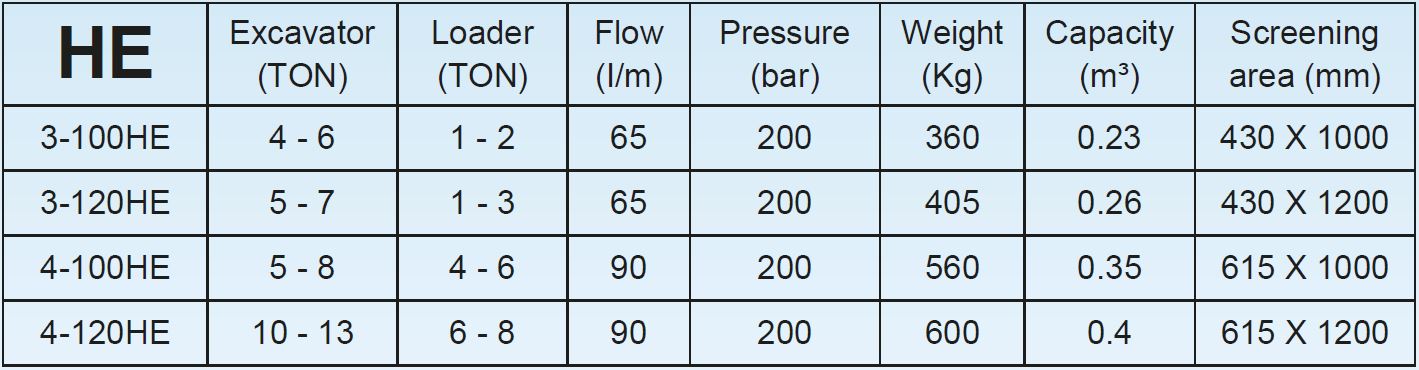

3-100HE
3 rotors
1000mm wide
For 4-6 ton excavators Or 1-2 ton loaders
3-120HE
3 rotors
1200mm wide
For 5-7 ton excavators Or 1-3 ton loaders
4-100HE
4 rotors
1000mm wide
For 5-8 ton excavators Or 4-6 ton loaders
4-120HE
4 rotors
1200mm wide
For 10-13 ton excavators Or 6-8 ton loaders
